Trucks Maz 10 tons

The vehicles of the Minsk automobile plant, with a carrying capacity of 10 tons, are popular models that are convenient for use both in urban conditions and for long-distance cargo transportation. They are used for industrial purposes, in the construction of buildings and roads, for agricultural needs. It is not surprising that over time, the demand for Maz by 10 tons only increases.

Today there are only two lines trucks of the Minsk plant with the appropriate load capacity - this is Maz 5551 and Maz 5336. Each line has several modifications and has a number of features.

Maz-5551

Legendary dump truck, time-tested, began to be produced in 1985. At that time, its maximum carrying capacity was only 8 tons, but several upgrades were able to correct this flaw. The last update took place after the onset of the 21st century. The car got a brand new cabin, under its hood there is a powerful modern engine that meets current environmental standards.

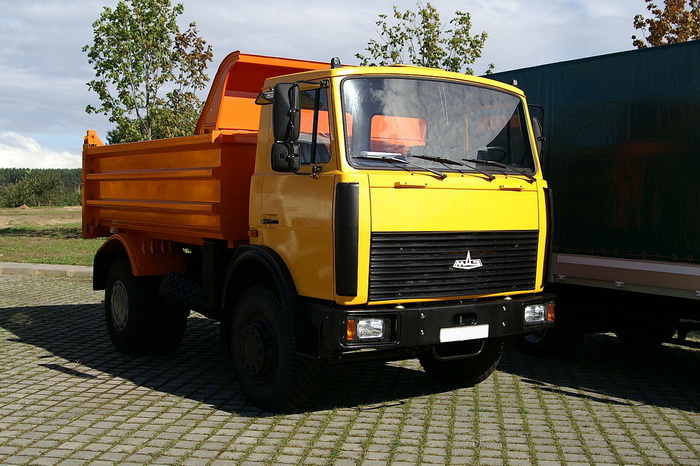

МАЗ-5551

Technical specifications

  • Engines from Cummins and YAMZ on different models have approximately the same power of 250 hp and are able to accelerate the vehicle to 90 km/h
  • Transmission 9-speed from YAMZ
  • Power steering
  • Fuel consumption 22 L per 100 km
  • Fuel tank capacity 200 L

General features

  • The maximum load capacity is 10 tons for all modifications implemented since 1998.
  • Gross weight with loading does not exceed 16.5 tons
  • The height of the car is 2,925 m, so under three-meter bridges should be passed with caution
  • Ground clearance does not exceed 28 cm

Maz-5551 is a dump truck, so the convenience of unloading plays an important role for it. The cabin rises 47 degrees in 15 seconds when fully loaded. It takes about 10 seconds to return to the starting position.

Cabin

The car has comfortable seats. On the driver's side, the seat is sprung, but this is all the amenities that you should count on. As if wanting to emphasize that the MAZ-5551 was created exclusively for work, the designers did not include even a radio in the basic configuration.

This spartan style is slightly compensated by the convenient folding mechanism of the cab, which takes into account and corrects all the shortcomings of the early modifications. Now the cabin reclines smoothly, provides free access to all other elements, and the location of the folding mechanism under the grille serves as an excellent safety system, because without opening the grille, it will be impossible to raise the cabin.

Despite the presence of several shortcomings, Maz-5551 is still considered one of the best solutions of the plant, since it performs its functions regularly for decades, regardless of the vagaries of the weather and the intensity of operation.

Maz-5336

The model with a carrying capacity of 10 tons, unlike the MAZ-5551, is designed for long-term transportation. For the first time the truck was introduced by the plant in the late 80s, after which it began its active implementation in various industries.

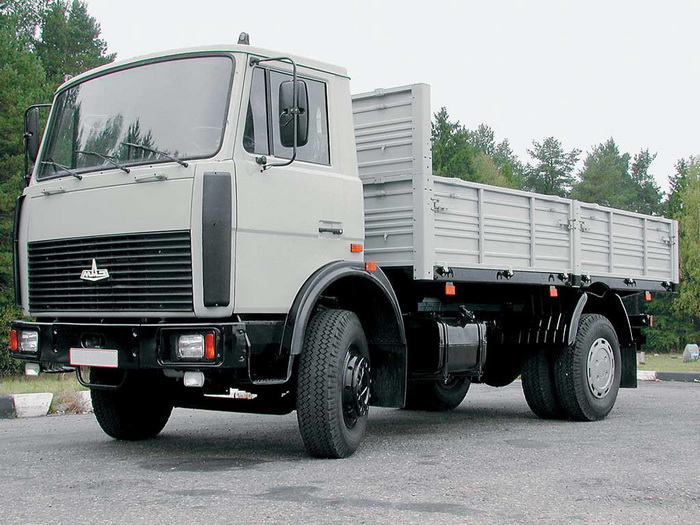

МАЗ-5336

Features

  • It is recommended to operate on paved roads
  • Transportation of various types of goods is allowed
  • Universal wheel Formula 4x2
  • Low fuel consumption
  • Simplicity of design, maintenance, repair
  • High wear resistance

In total, there are 4 main modifications of the MAZ-5336, differing in engine power. The" hearts " of all vehicles are produced, as well as decades ago, by the Yaroslavl motor plant. Today these are diesel engines for 6 and 8 cylinders, corresponding to the environmental standard Euro-3 and above.

Technical specifications

  • Engine from 250 to 350 hp
  • Transmission from YAMZ
  • Transmission with two-disc clutch, peripheral Springs and power steering
  • Suspension spring
  • Additional stability stabilizer on the rear suspension

General features

  • Load capacity 9.8 tons
  • Permissible weight of the road train 40 tons
  • Maximum speed 100 km / h
  • Height 3.16 m
  • Ground clearance 23 cm

Cabin

As in the case of the MAZ-5551, the cabin has undergone a technical update, its appearance has changed, but the amenities for the driver have not increased, except for a more comfortable dashboard. Standard equipment includes such additional options as advanced sound insulation, two beds, the ability to adjust the position of the driver's seat.

Conclusions

10-ton trucks from Maz are real "workhorses", characterized by high performance characteristics, lack of breakdowns with proper care and long service life. You can buy trucks from the official dealers of the Minsk automobile plant LLC PC "Russian Standard" at Pleasant prices, in accordance with all quality certificates and with customer support in the process of using the vehicle.
