Crane manipulator Maz
In urban conditions, very often there are situations when work is performed on an object with a limited area, where two vehicles – a truck and a crane-cannot be accommodated, and accurate transportation of certain elements is necessary. In this case, Maz will come to the rescue with a manipulator. The car is equipped with both loading and transport equipment, which makes it a universal in the field of loading and unloading. It is not surprising that the demand for Maz models with CMU is constantly increasing.
Features of cargo Maz with CMU
The vehicle is specially designed for lifting loads, loading them into the body and subsequent transportation over short and long distances. The design of the models allows you to work with single objects, containers and pallets, which makes the crane manipulator Maz indispensable in such areas as:
- Installation work;
- Construction of low-rise buildings;
- Public Utilities
- Any work carried out in conditions of limited areas.
With the help of these cars you can transport equipment, metal, wood, as well as fragile cargo, such as glass.
Catalog of Maz wagons with Crane manipulators
Like other model lines from the Belarusian automobile plant, manipulator cranes are constantly being improved, so today there are only modernized versions with modern engines that meet the Euro-4 or Euro-5 environmental standard.

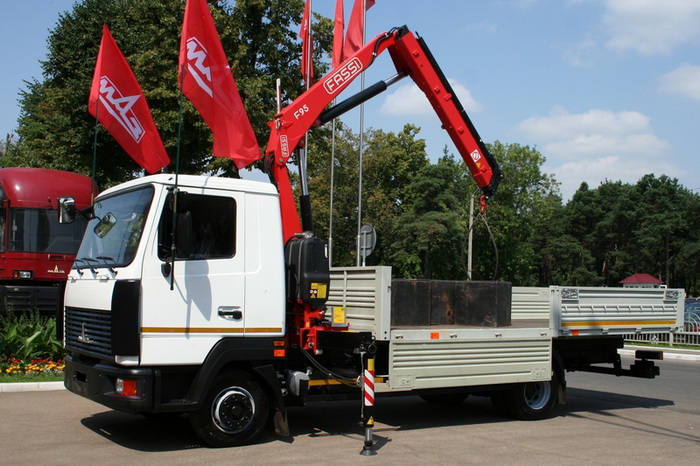

Maz-4940
The modern truck model with a 4x2 wheelbase is equipped with a Cummins diesel engine with 166 hp and a six-speed manual transmission of foreign production. Some cars have a budget solution from the Yaroslavl engine plant, but corresponding in power. In addition, among the important technical characteristics can be noted:
- Maximum load capacity 3.2-3.92 tons, depending on the modification;
- Maximum lifting height 10-10. 8 m;
- Load moment 8,2-7,4;
- The reach of the boom is 8 m, regardless of the modification.
The design feature of the entire line is the crane-manipulator installation of Italian production Fassi, the reliability of which is time-tested.

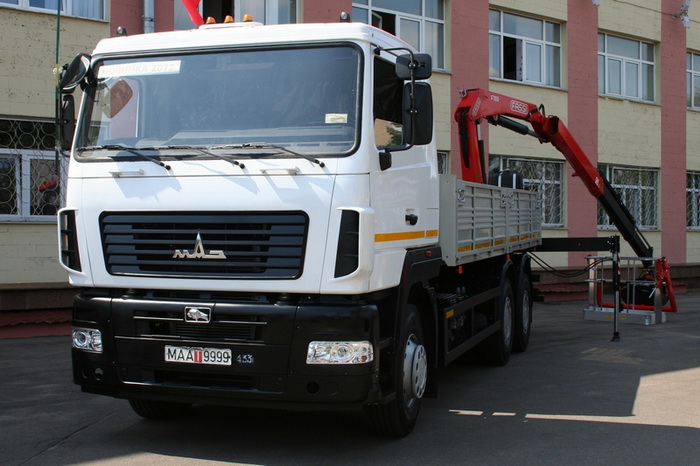

Maz-6940
Today, the plant produces two lines of Crane manipulators Maz-6940-with markings B and C.
Trucks marked C are updated cars with a wheelbase of 6x4, on which an engine from YAMZ with a capacity of 275 hp is installed. in various modifications, there are small deviations in technical characteristics.:
- Load capacity 5.4-6.1 tons;
- Maximum lifting height 9.5-12.0 m;
- Load moment 11.11-14.3;
- The maximum reach is 8 m in all models.
Vehicles marked B-a slightly outdated line with an engine of the Yaroslavl motor plant for 312 HP, corresponding to Euro-4. The maximum load capacity is only 5.28 tons, and the lifting height does not exceed 10.35 m.
Traditionally, all models are equipped with a Fassi manipulator Crane, the length of the boom of which allows work to be carried out at a distance of up to 8 meters from the car.
Where to buy
The crane manipulator on the basis of Maz in Russia are popular, in comparison with the equipment of foreign manufacturers, because they are adapted to the changeable climate. They retain their performance characteristics at temperatures from -40 to +50 degrees and humidity reaching 100%.
The popularity of technology leads to the emergence of a large number of fakes in the profile market. You can buy an original vehicle in Vologda, without fear of deception, from the official dealer of PC "Russian truck"LLC. Our cars are supplied directly from the manufacturer, our customers can influence the configuration, within the framework provided by the designers, and in addition we only have adequate prices, not inflated, but fully consistent with the quality of the cars.
