Maz cranes

The need for Maz cranes arose in the 80s, when increased construction started in cities, and factories flourished throughout Russia. In order to easily carry out loading and unloading, construction, installation and production work, the designers of the Minsk automobile plant created the MAZ-5337 model-an automobile crane that fully meets the needs of the consumer and adapted to the changeable Russian climate.

Technical specifications

Maz cranes are Composite models based on the chassis from the Minsk manufacturer and cranes from other enterprises. Most often, Ivanovets and Klintsy cranes are used for assembly, but you can find models with a QMS or Mashek lifting mechanism.

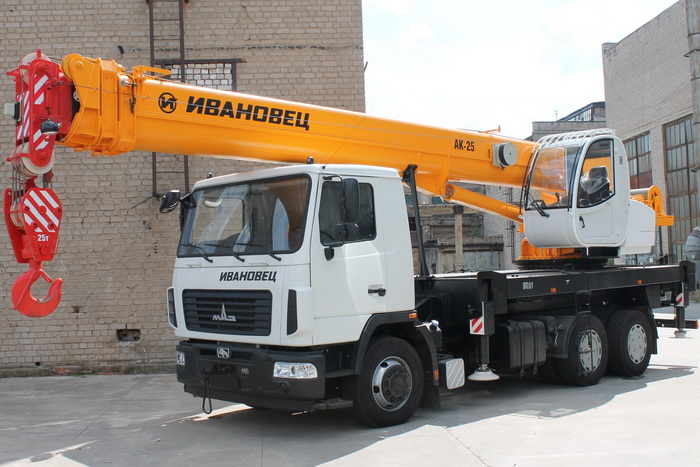

КС-45717А

Each unit is equipped with a swivel cab with a telescopic boom in several sections (up to 4), providing a lifting height of up to 25 m. The reinforced hydraulic drive does not have its own starting mechanism, but works from the car engine. This solution ensures the compactness of technology.

All information about the current position of the crane is displayed on an electronic board located in the crane operator's cabin. Here the lifting height, boom length, loading is noted. The crane operator can not only track this data and feed the boom in the right direction, but also limit the area of its activity, which is very important when working in cramped conditions, for example, if there is a residential building nearby or a busy street passes. The limiter parameters are set via the control unit and operate automatically until changes are made.

Chassis characteristics

  • The basis of cranes from Maz has a wheelbase of 4x2.
  • In the" heart " of the car there is an engine from the Yaroslavl engine plant in 6 cylinders. In different models, its power ranges from 180 to 230 hp.
  • Fuel tank for 200 liters.
  • The average consumption ranges from 21 to 35 liters per 100 km.
  • The maximum speed of the truck crane according to the official documentation is 86 km / h.
  • The lifting speed of the load is about 7 m per minute, that is, 3-4 minutes are needed to reach the maximum height.
  • The chassis rotates the crane operator's cabin without load by 360 degrees, if there is a load on the hook, then by 240 degrees.
  • The maximum surmountable slope is 14 degrees.
  • The supports are exposed mechanically, which greatly facilitates the work with the vehicle.

In order to avoid injuries and potentially dangerous situations, the designers installed restrictions on Maz cranes. First of all, this is a ban on movement if there is a load on the hook. In addition, if the supports are not exposed, the lifting/lowering function of the load will be blocked, as there is a possibility of overturning the machine.

Crane characteristics

Such important technical characteristics as lifting capacity and lifting height depend not so much on the chassis as on the crane, which is installed on the Maz base. The model range allows the use of various lifting mechanisms.

  • Ivanovets KS-3577-the compact model most convenient for carrying out construction or installation works in city conditions. Its carrying capacity is only 12.5 tons and its maximum height is 14 m. The length of the boom in the standard state of 3.6 M increases to 13 m.
  • Ivanovets KS-35715-at first glance at the model, it seems that the crane is not capable of serious loads, since the minimum length of the boom is 1.9 M, and the machine itself looks miniature compared to other representatives of the model range. In fact, the carrying capacity reaches 16 tons, the maximum height is 18.4 M without a goose, and with it – 25 m. the boom is extended to 17 m.
  • Klintsy KS-35719-5-02 – The model is used when it is necessary to move heavy loads to a small height. With a maximum lifting capacity of 16 tons, the maximum lifting point is at a distance of 18.4 m from the ground. The length of the arrow varies from 3.6 to 13 m.
  • Masheka KS-35719-3-02 – The average model, capable of lifting a load of 15 tons, is equipped with an arrow from 3 to 18 m. the maximum lifting height is 20.4 m.
  • KS-45717A is a modern model capable of lifting loads up to 25 tons to a height of more than 25 m. It is installed only on the chassis of a new generation based on Maz-6312 with an engine of 270 hp, operating according to the environmental standard Euro-4.

КС-45717А

Cost

Despite the fact that the appearance of Maz cranes is far from the exterior of modern cars, this technique is considered to be one of the best in its class. In order not to encounter a fake, you should purchase cars directly at the factory through official Maz dealers, such as LLC PC "Russian truck".

The cost of new equipment starts from 1 million rubles., reaches 5 million rubles. and depends on such parameters as:

  • Chassis modification;
  • Crane model;
  • Additions in accordance with the wishes of the customer.

Only an authorized dealer can contact the factory directly, send a request for the assembly of a model that meets the customer's requirements and provide the customer with original equipment without mileage at an affordable price.
